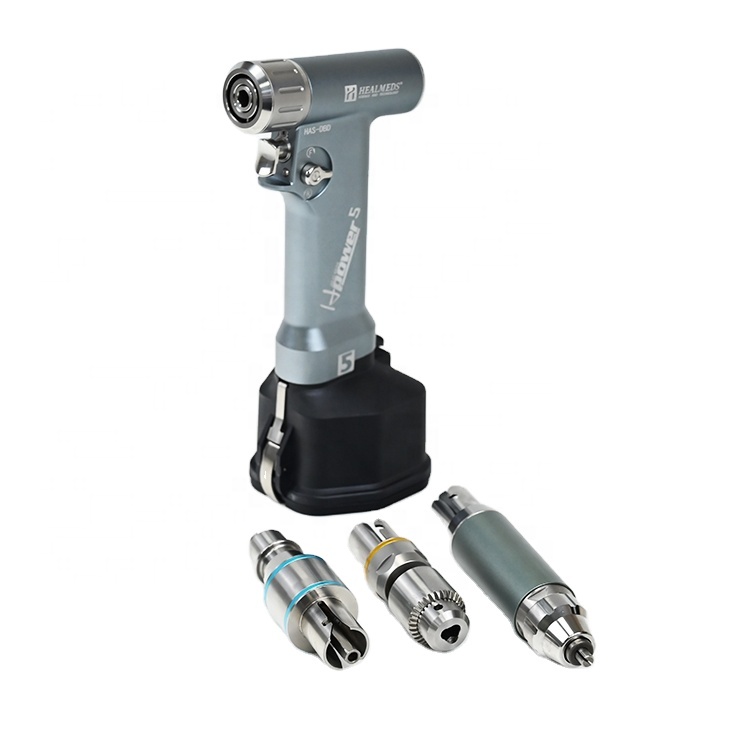

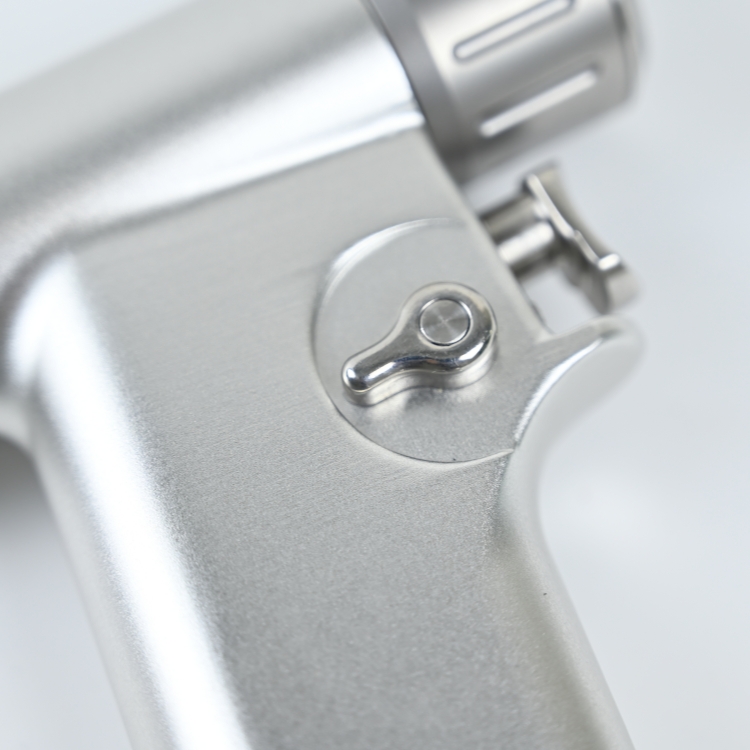

Veterinary Orthopedic Mini Drill Reaming Slow Speed Drill High Speed Drilling for Vet Small Bone
Veterinary Orthopedic Mini Drill Reaming Slow Speed Drill High Speed Drilling for Vet Small Bone
Veterinary Orthopedic Mini Drill Reaming Slow Speed Drill High Speed Drilling for Vet Small Bone
Veterinary Orthopedic Mini Drill Reaming Slow Speed Drill High Speed Drilling for Vet Small Bone
Veterinary Orthopedic Mini Drill Reaming Slow Speed Drill High Speed Drilling for Vet Small Bone
1 / 5
Veterinary Orthopedic Mini Drill Reaming Slow Speed Drill High Speed Drilling for Vet Small Bone
Veterinary Orthopedic Mini Drill Reaming Slow Speed Drill High Speed Drilling for Vet Small Bone
Veterinary Orthopedic Mini Drill Reaming Slow Speed Drill High Speed Drilling for Vet Small Bone
Veterinary Orthopedic Mini Drill Reaming Slow Speed Drill High Speed Drilling for Vet Small Bone
Veterinary Orthopedic Mini Drill Reaming Slow Speed Drill High Speed Drilling for Vet Small Bone

Veterinary Orthopedic Mini Drill Reaming Slow Speed Drill High Speed Drilling for Vet Small Bone

Send Inquiry

Product Description

E100 Electric Surgical Power Tools Orthopedic Multifunction Drill and Saw System
📋 Product Specifications
Item Value

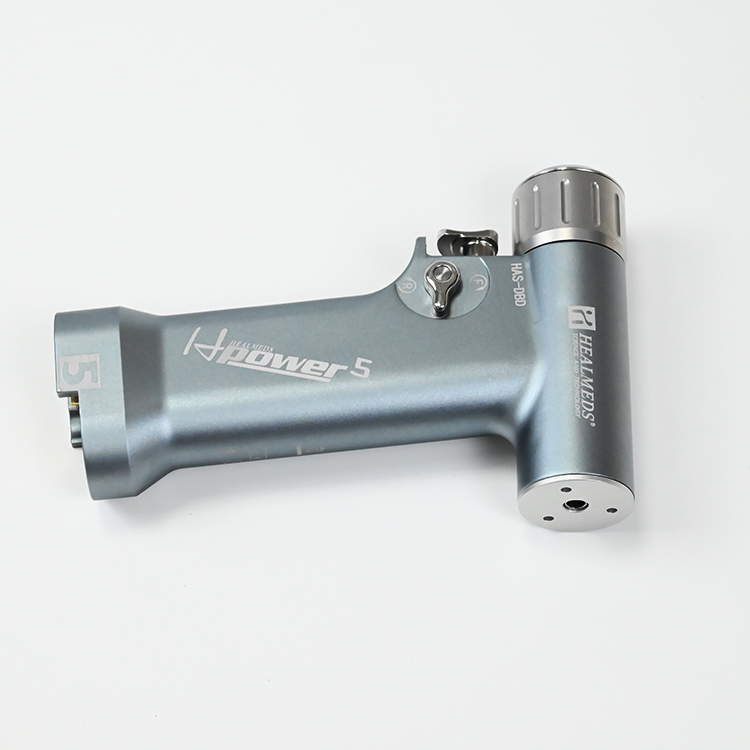

Multi-Function Handpiece Equipped with brushless DC canulated motor imported from USA
Battery Ni-MH with Longer service-life, High capacity: 2100MAH, Voltage: 9.6V
Battery Box Peek material: sterilized more than 3000 times
Charger Convenient design to guarantee the battery life
Transfer Shield Imported stainless steel 304

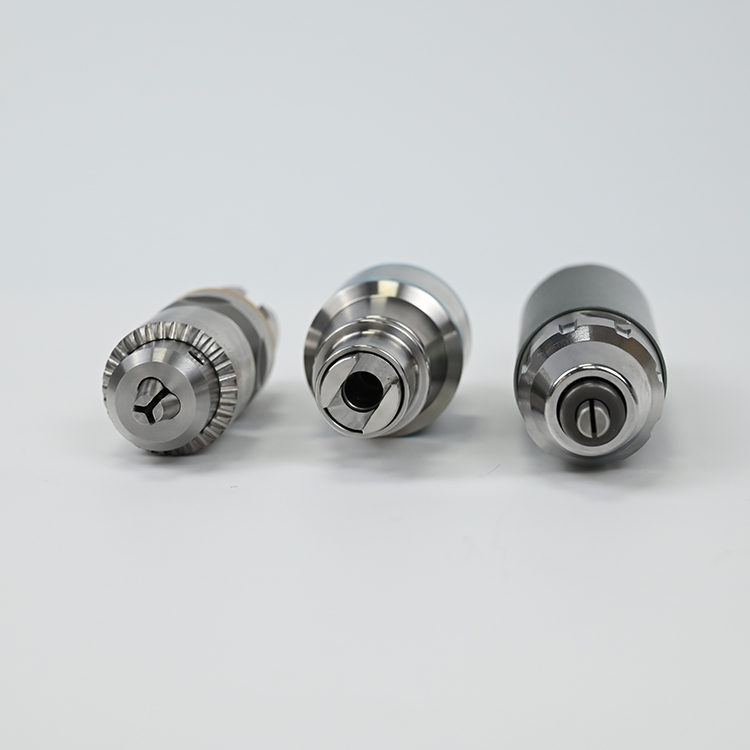

Key Chuck Speed Range 0-1200rpm, Torque 3.5NM
Reaming Attachment Speed Range 0-400rpm, Torque 10NM
K-wire Attachment 0.7-1.6mm / 1.6-4.0mm
Reciprocating Saw Frequency: 0-12000cpm
Sterilizing Box 445*275*215mm, 4.6Kg

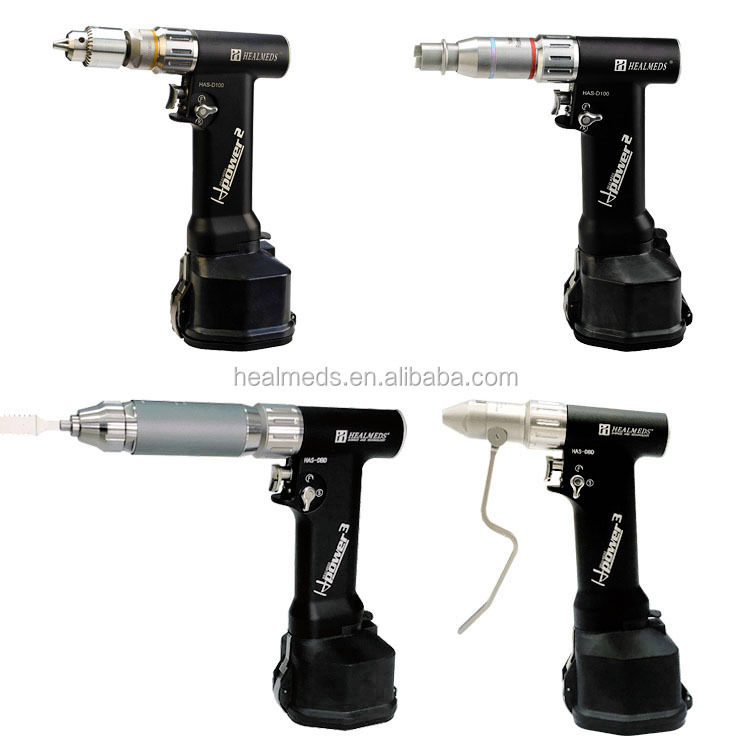

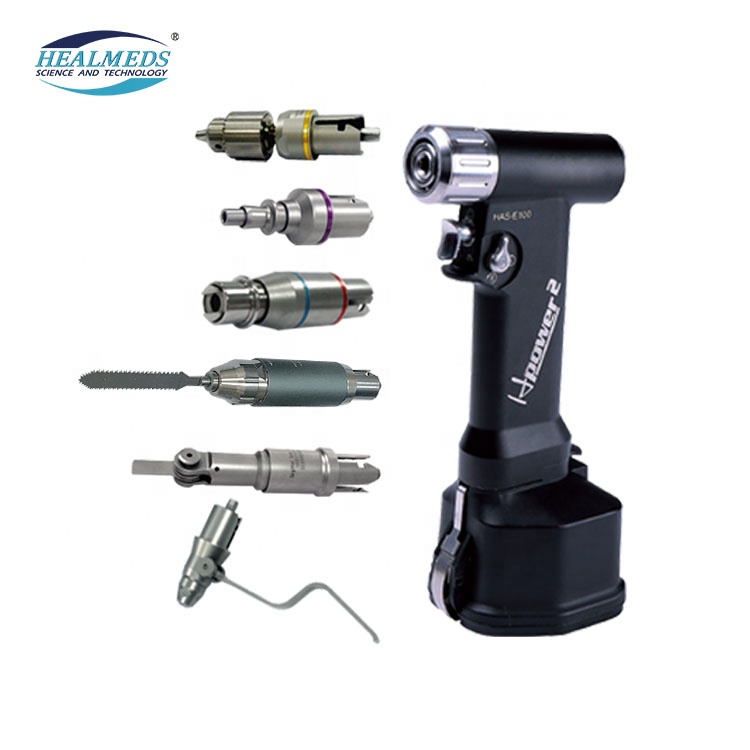

Surgical Drill Display 1 Surgical Drill Display 2
⭐ Key Features
01
High-performance imported brushless motor
02
No-limit speed changing control
03
Big capacity 2100mAh safe Ni-MH battery
04
High sealing system for protection
05
Ergonomic design for one-hand operation
06
Whole unit autoclavable at 135°C (Improved type ≤ 155°C)

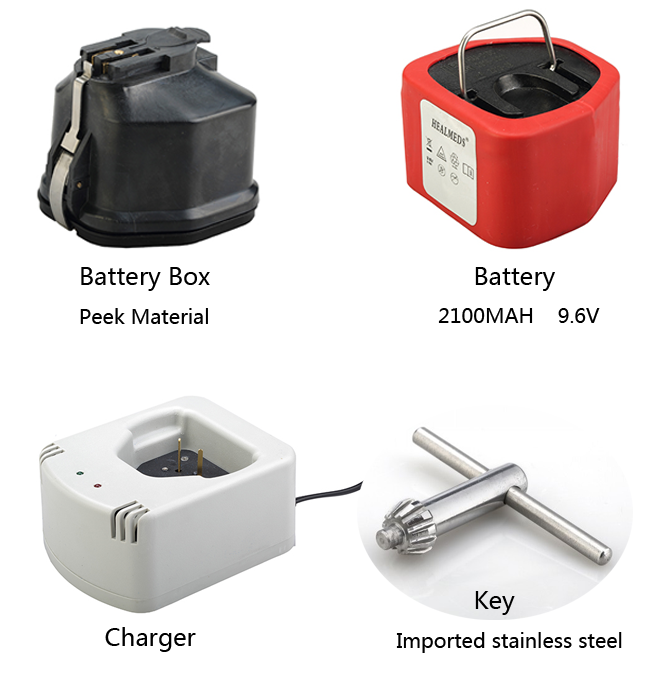

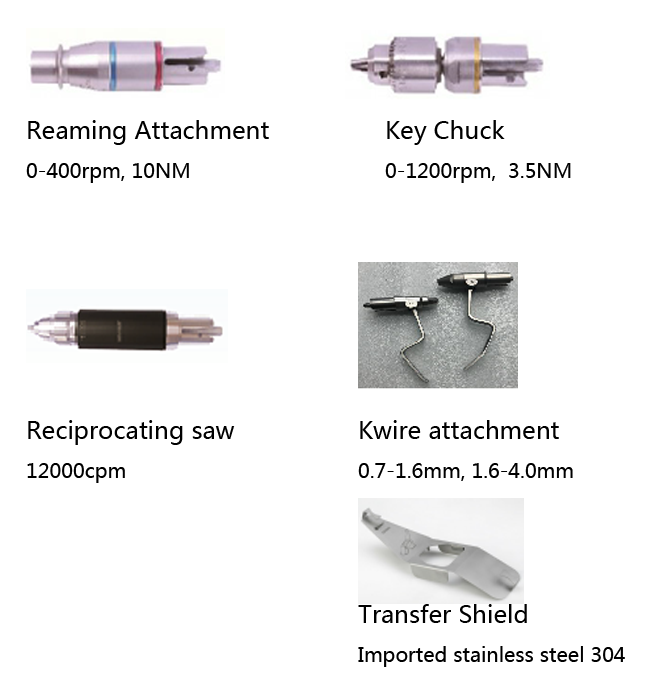

Surgical Drill Components Surgical Drill Detail

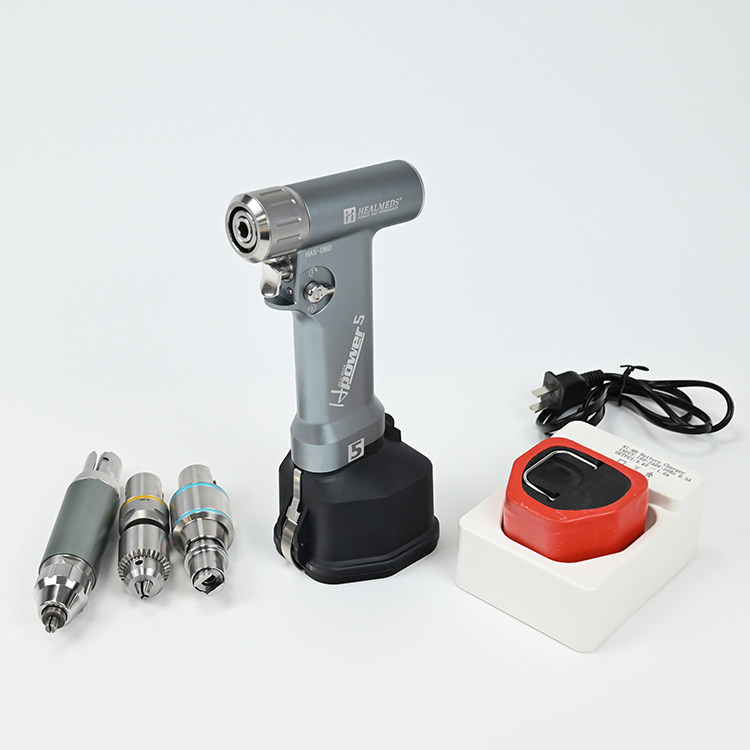

📦 Standard Configuration
One Handpiece
One Battery
One Charger
One Key Chuck or Reaming Attachment
One Sterilization Channel
One Aluminum Alloy Case
🛡️ Warranty Information

Machine & Motor: 2 Years Warranty

Battery & Consumables: 3 Months Warranty

⚠️ Important Operating Notes
Sterilize temperature must be ≤ 135°C (Improved type ≤ 155°C); exceeding this will damage the motor.
Normal bone drill holds bits < 6mm. Acetabulum reaming drill (300 rpm), canulate drill (600 rpm).
Remove battery from the power tool immediately after surgery to prevent discharge and extend life.
The battery is NOT autoclavable. Do not sterilize.
Wash the cranial bur immediately after surgery to avoid blood clotting; ensure it is dried properly.
Ensure the battery space in the handpiece remains completely dry after sterilization.

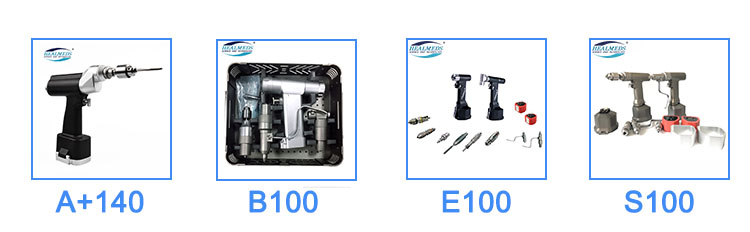

Related Accessories
Production Scene 1 Production Scene 2 Production Scene 3
📜 Certifications
Certificate 1 Certificate 2
Certification Detail 1
Certification Detail 2
📦 Packaging & Shipping
Packaging Box
Frequently Asked Questions
Q1: What is the maximum sterilization temperature for the E100 system? A: The standard sterilization temperature is ≤ 135°C. For improved types, it can reach up to 155°C. Exceeding these limits may damage the motor.
Q2: Is the battery autoclavable? A: No, the battery is not autoclavable and should never be sterilized. It must be removed from the handpiece before the sterilization process.
Q3: How long is the warranty for the surgical power tools? A: We provide a 2-year warranty for the whole machine and the motor. Fast-consuming items like the battery have a 3-month warranty.
Q4: What are the speed and torque specifications for the Key Chuck? A: The Key Chuck attachment has a speed range of 0-1200rpm and a torque of 3.5NM.
Q5: What type of motor is used in this system? A: The system is equipped with a high-performance brushless DC canulated motor imported directly from the USA for superior reliability.
Q6: How should the tools be maintained after surgery? A: Batteries must be removed immediately. The cranial bur should be washed right away with a purger to prevent blood from sticking, and then dried thoroughly.
Technical FAQ Visual
