Conmed Stryker Medical Orthopedic Drilling Electric Orthopedic Drill for Orthopaedic Power Tools

Send Inquiry

Product Description

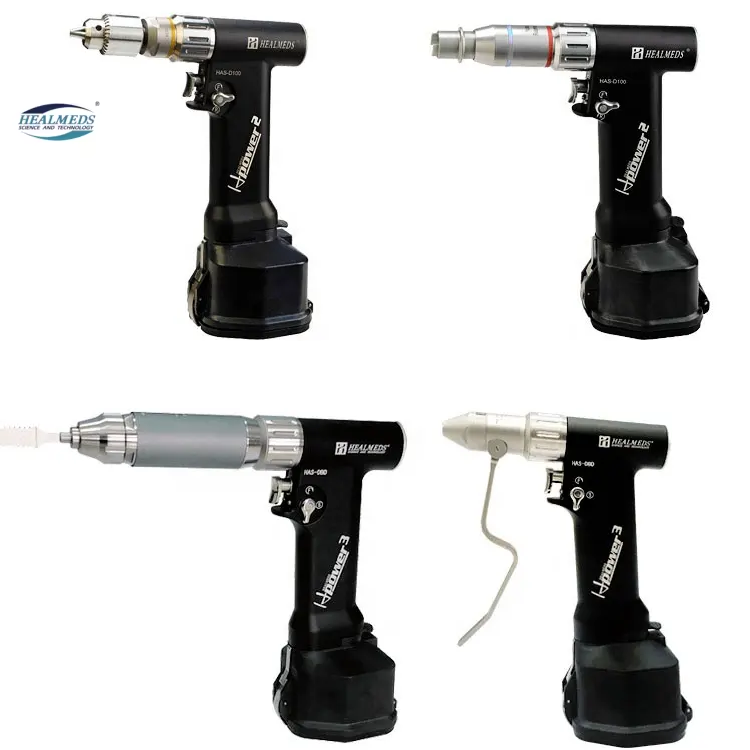

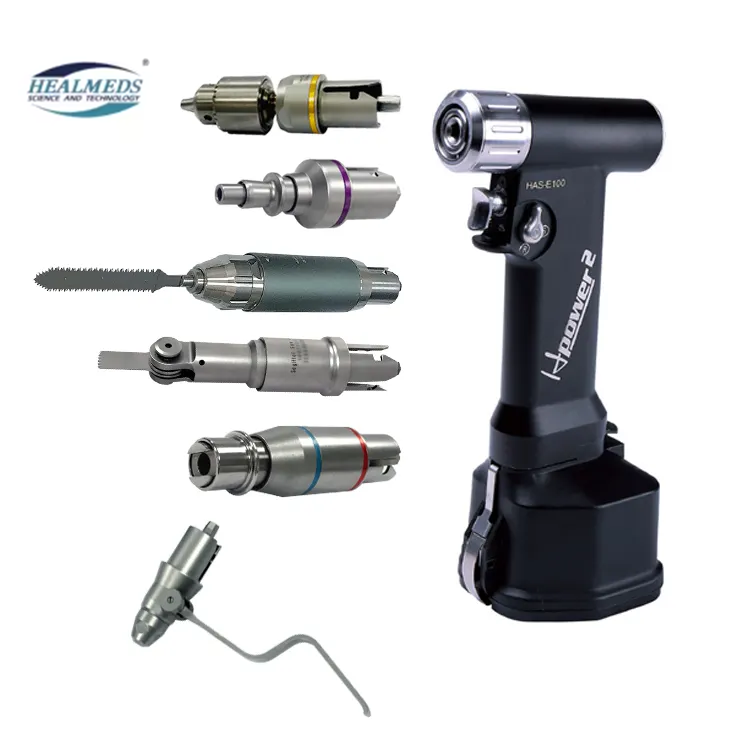

E100 Multifunction Drill - Mini Multi Function Bone Drill Machine

Key Features

✓

Key Chuck Attachment: Speed 0-1200rpm | Torque 3.5N-m

✓

Reaming Attachment: Speed 0-400rpm | Torque 10N-m

✓

Durable Build: All copper thick wall chuck, high concentricity, and stable speed.

✓

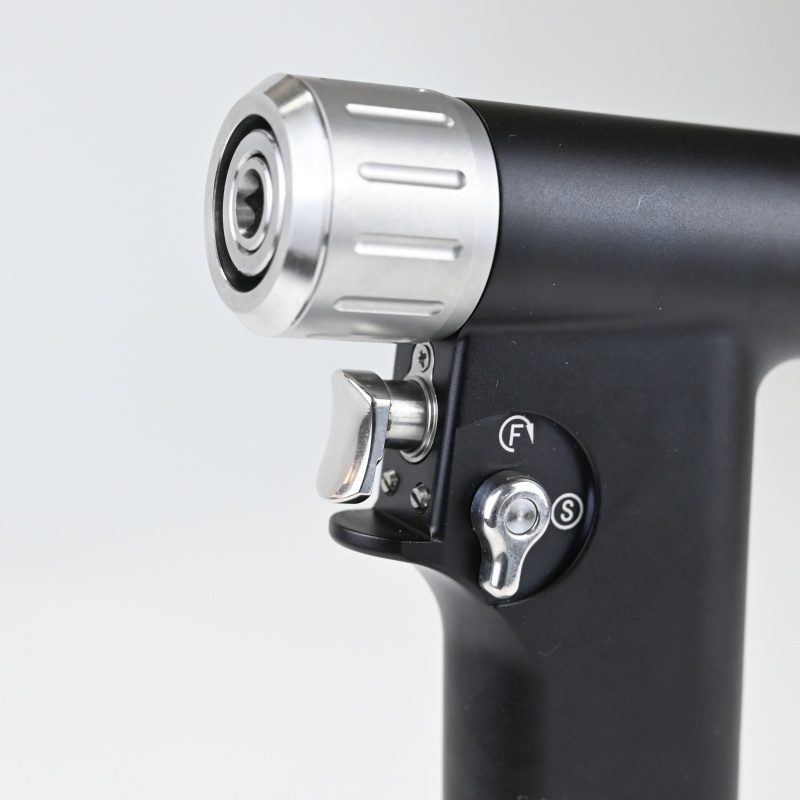

Efficient Design: Tail power switch, spindle clamping for quick drill bit changes.

✓

High Stability: Micro motor with full copper core wire movement for low noise and high power.

✓

Ergonomic Grip: Frosted texture surface prevents slippage and ensures comfort during long use.

Product Details

Technical Specifications

Item	Value
Multi-Function Handpiece	Equipped with brushless DC canulated motor imported from USA

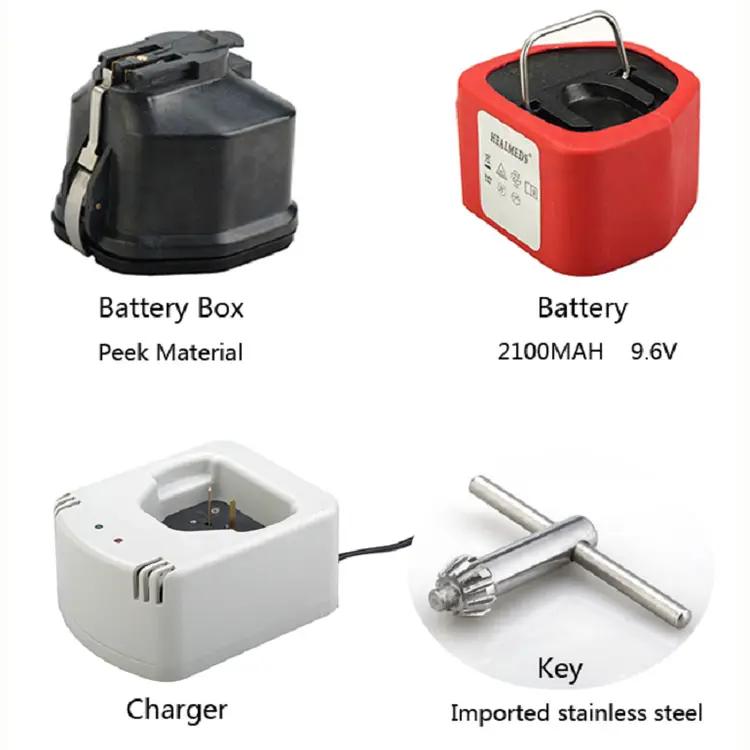

Battery	Ni-MH with Longer service-life, High capacity: 2100MAH Voltage: 9.6V
Battery Box	Peek material: sterilized more than 3000 times
Charger	Convenient design to guarantee battery life
Transfer Shield	Imported stainless steel 304
Key Chuck	Speed Range 0-1200rpm, Torque 3.5NM
Reaming Attachment	Speed Range 0-400rp, Torque 10NM
K-wire Attachment	0.7-1.6mm / 1.6-4.0mm

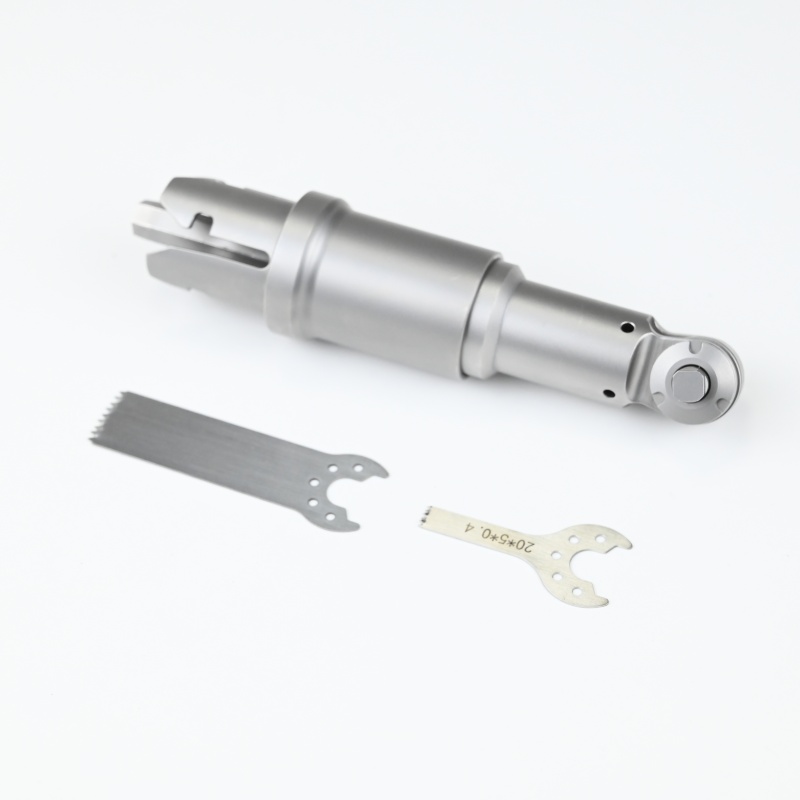

Reciprocating Saw	Frequency: 0-12000cpm
Sterilizing Box	445275215mm, 4.6Kg

Payment, Delivery & Advantages

Frequently Asked Questions

What type of motor does the E100 handpiece use?

The handpiece is equipped with a high-performance brushless DC canulated motor imported from the USA.

How many times can the battery box be sterilized?

The battery box is made of premium Peek material and can be sterilized more than 3000 times.

What are the speed and torque specifications for reaming?

The reaming attachment offers a speed range of 0-400rpm and a maximum torque of 10NM.

What sizes of K-wire are compatible with this system?

The K-wire attachment supports two ranges: 0.7-1.6mm and 1.6-4.0mm.

What is the battery capacity and voltage?

It features a long-life Ni-MH battery with a capacity of 2100MAH and a voltage of 9.6V.

Is the device designed for comfort during long procedures?

Yes, the body features a frosted texture to prevent slippage and an ergonomic design to reduce hand fatigue during extended use.
