| Parameter | Data |
|---|---|
| Speed | 0-1200rpm |
| Torque | 2.9N.m |
| No-load Noise | ≤45dB |
| Operation(V) voltage | 7.2V |
| Sterilization temperature | 155° |
| Radial circle run-out | ≤0.1mm |
| Axial Movement | ≤0.5mm |
| Chuck gripper diameter | ≤4mm |
| Oscillations | 0-16000cpm |
| Battery Capacity | 1400mAh |

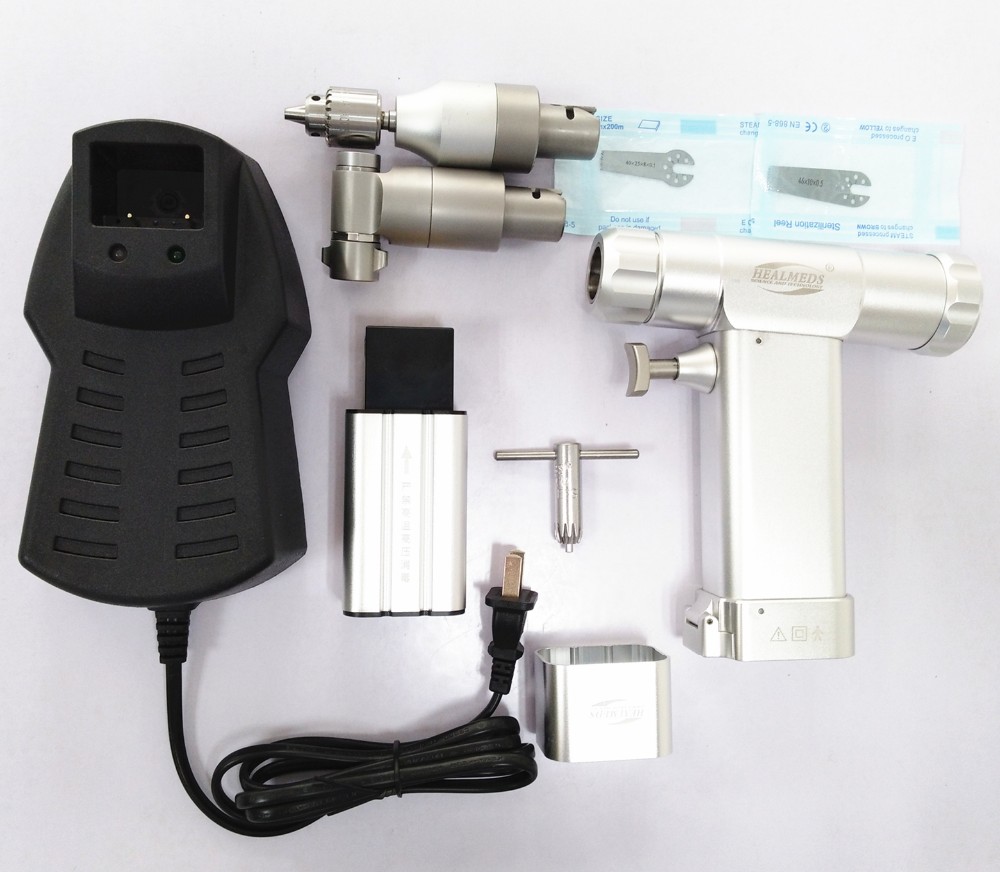

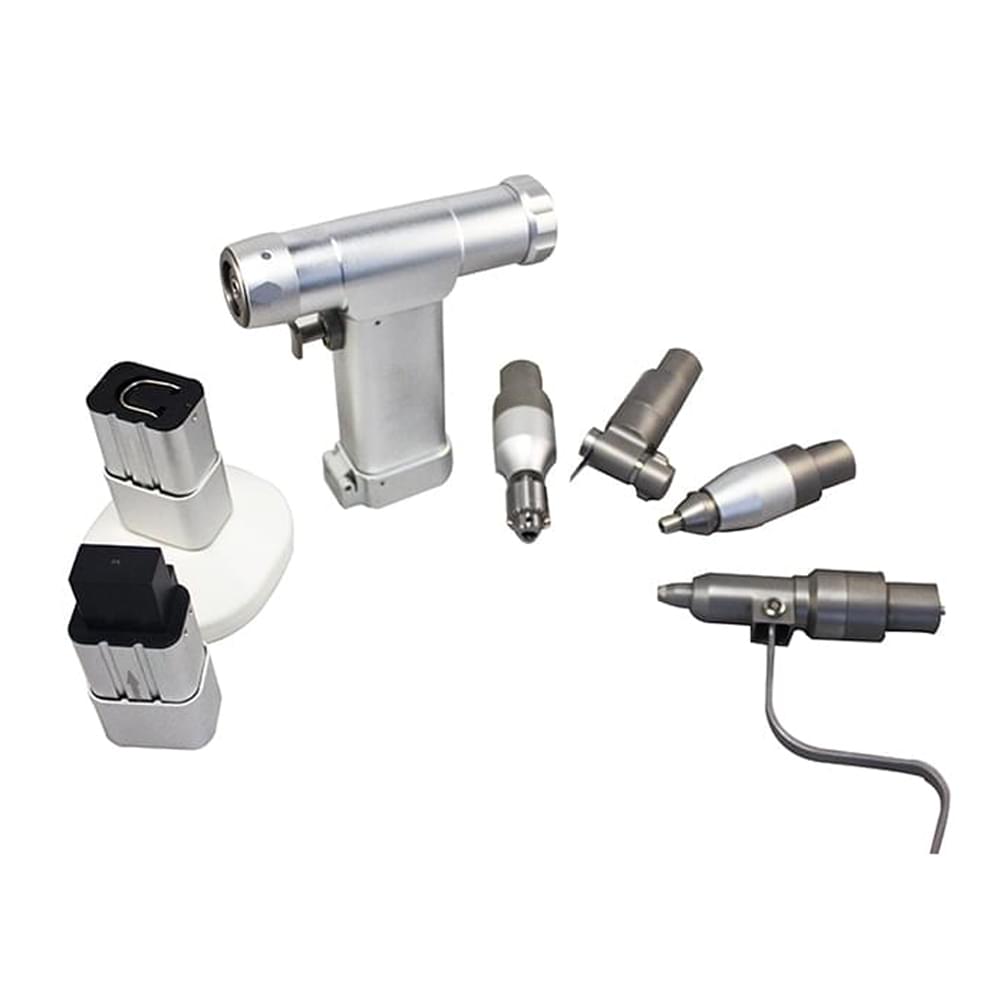

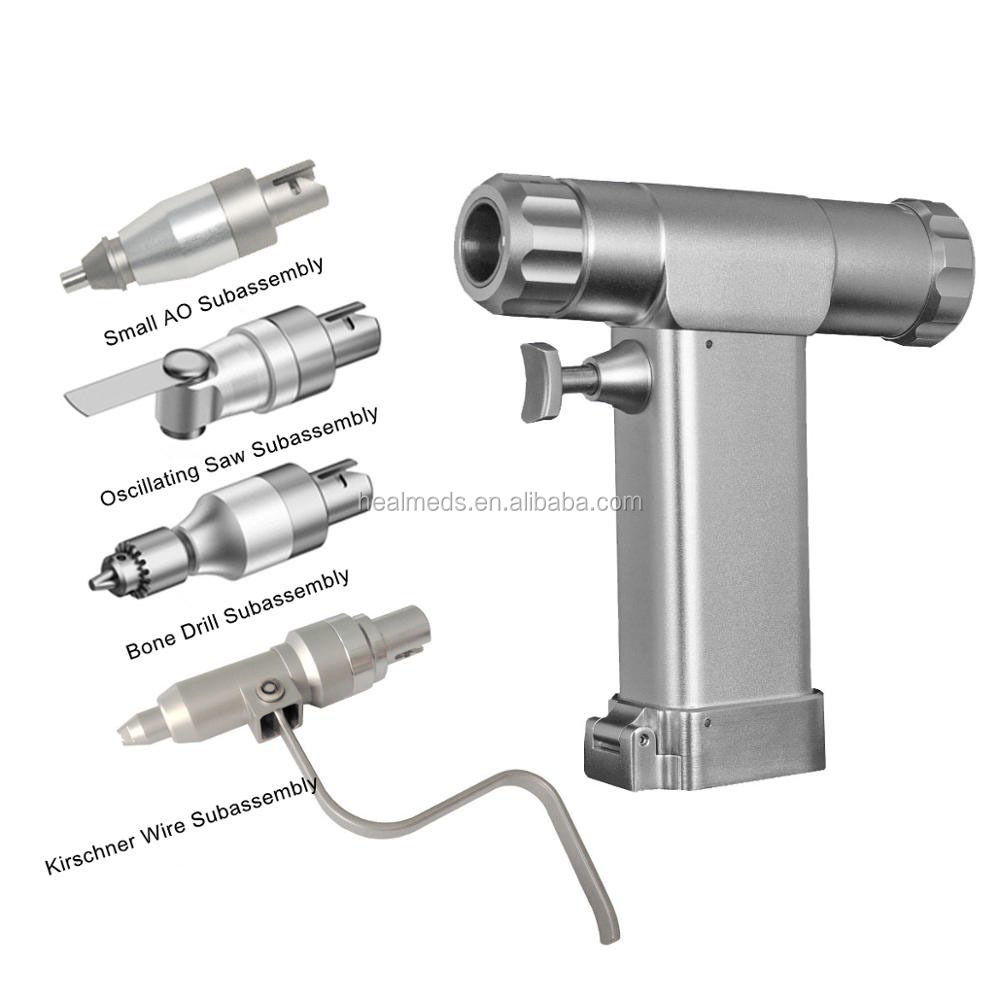

| No. | Accessory | Qty. | Note |
|---|---|---|---|

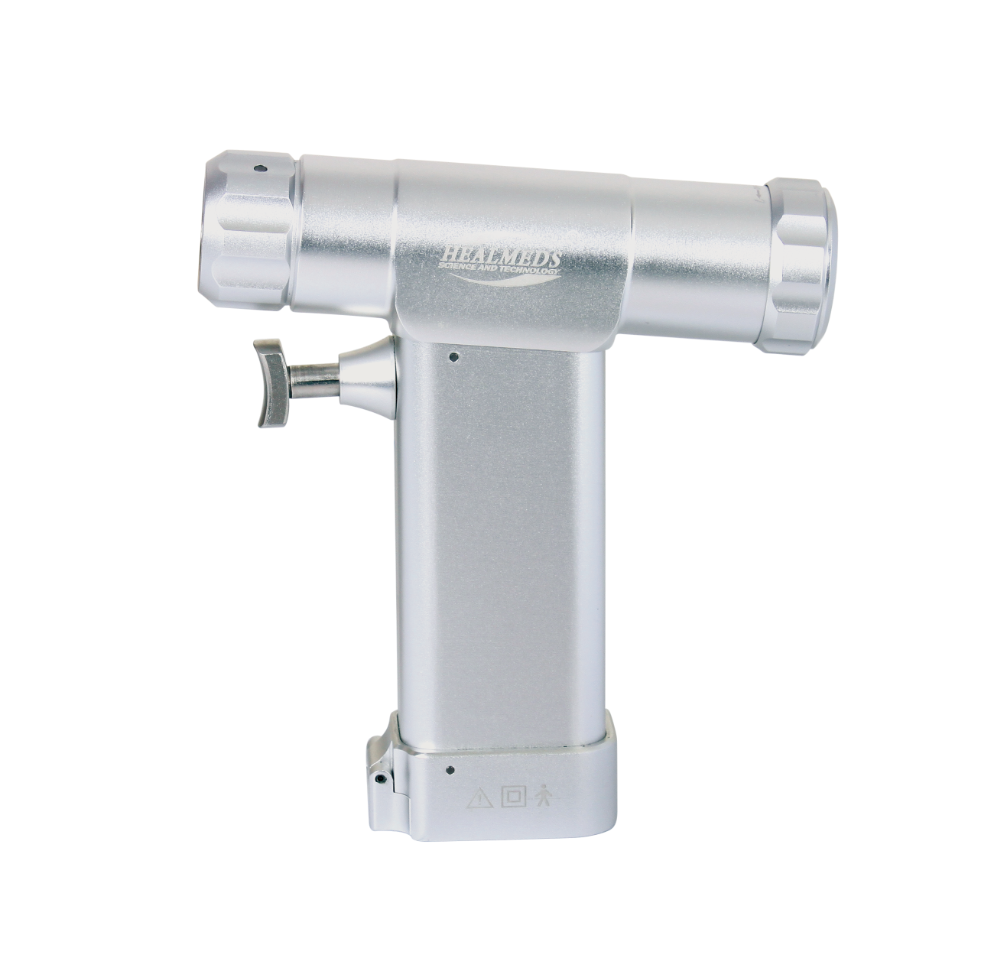

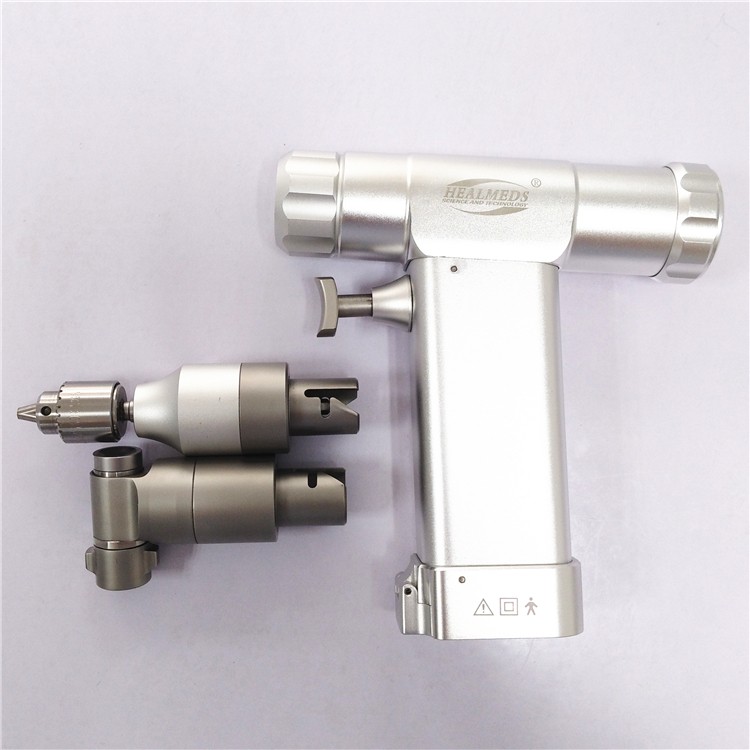

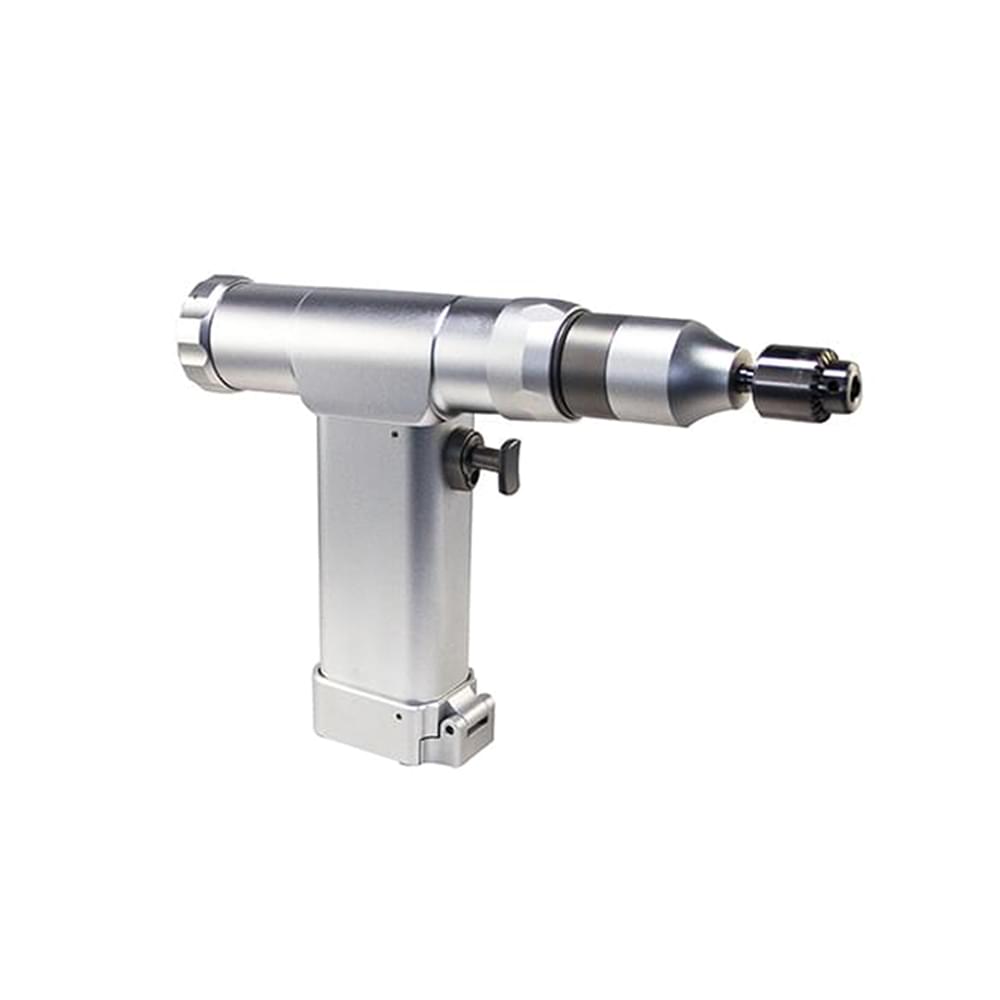

| 1 | Handpiece | 1 | 1.02kg, can be connected with several adapters, autoclavable up to 135℃ |

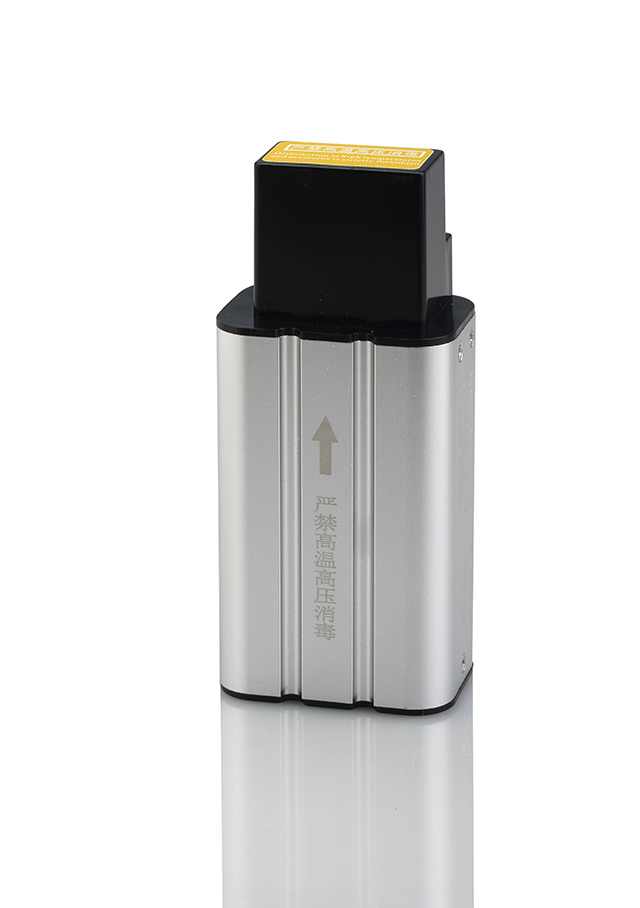

| 2 | Battery | 2 | Could not be sterilized, lasts 30 minutes after full charge |
| 3 | Charger | 1 | 110-220V, matches both European & American type |

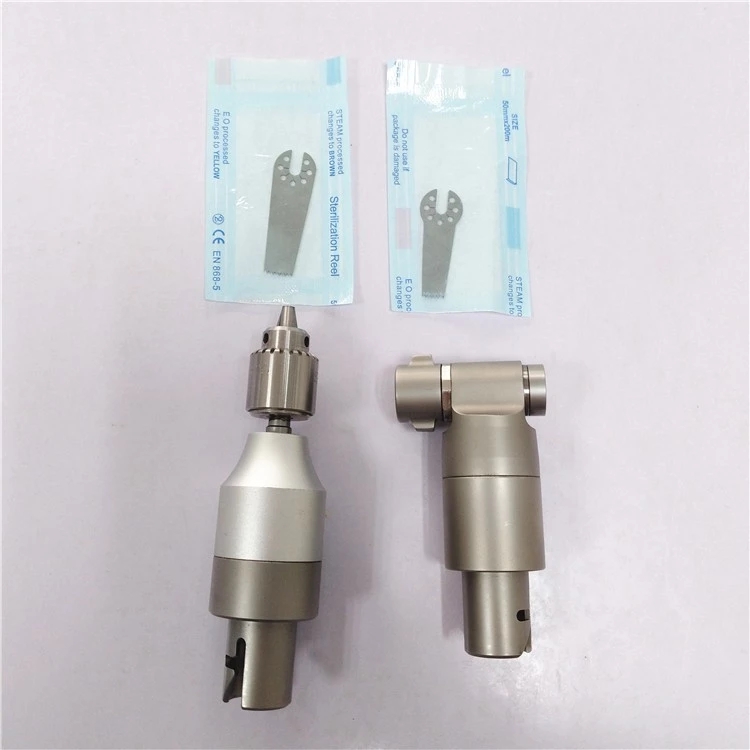

| 4 | Drill chuck | 1 | Imported, high Coaxiality, suitable for trauma surgeries |
| 5 | Oscillating Saw | 1 | Used for joint surgeries |
| 6 | Blade | 2 | 7 stars blades with optional sizes |
| 7 | Small AO | 1 | Trauma surgery for AO Type, for drilling holes and fixing plates |
| 8 | K-Wire | 1 | Holding K-wire very conveniently |
| 9 | Sterilizing channel | 1 | Could be sterilized |
| 10 | Aluminum case | 1 | 445*270*150mm, Weight: 6kg |
* Note: Price range is just for reference. It depends on client's choices for attachments.
Warranty periods:
• Whole machine: 1 year
• Motor: 2 years
• Battery and fast consumption items: 3 months
