Conmed Stryker Multifunctional Drill Saw System Orthopedic Power Drill for Vet

Send Inquiry

Product Description

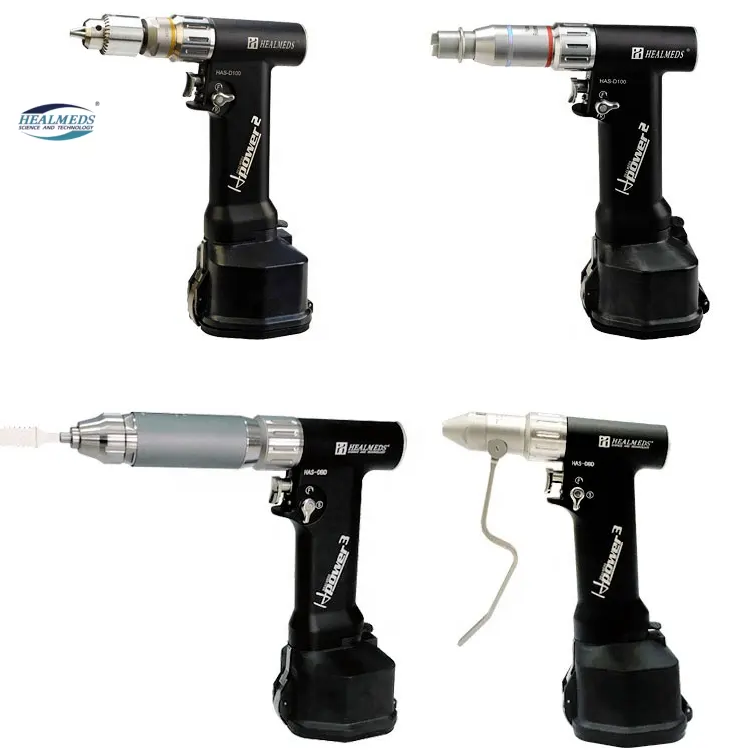

E100 Multifunctional Drill Saw System

Medical Electric Orthopedic Drill for Orthopaedic Power Tools

Features & Performance

Key Chuck Attachment Speed Range: 0-1200rpm
Torque: 3.5N-m

Reaming Attachment Speed Range: 0-400rpm
Torque: 10N-m

Exceptional maneuverability and control
Minimized chance of sterility breaks
Proven durability with extensive trials to ensure reliability and integrity in a wide variety of potential scenarios

Product Details

Technical Specification

Item	Value

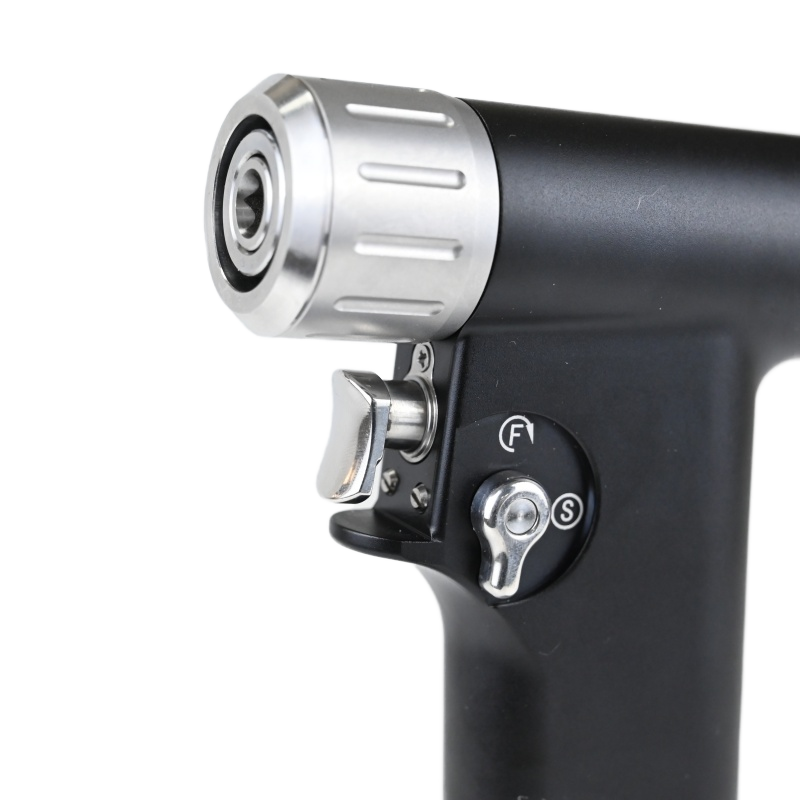

Multi-Function Handpiece	Equipped with brushless DC canulated motor imported from USA

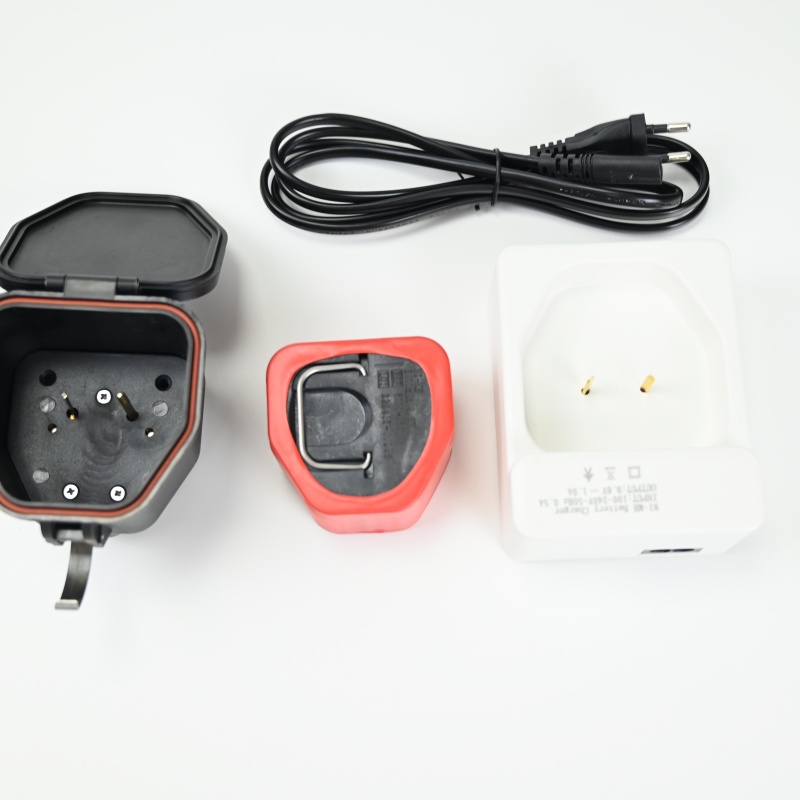

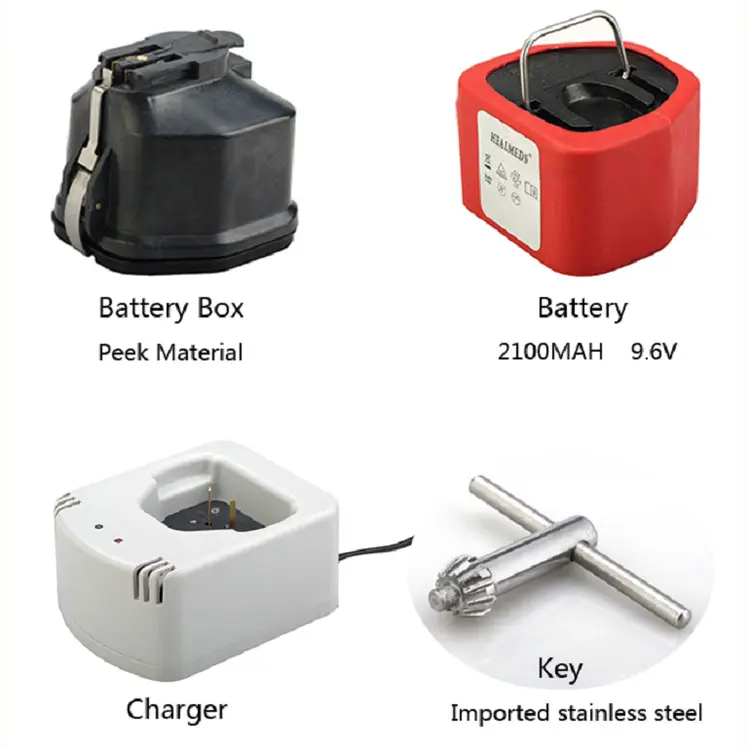

Battery	Ni-MH with Longer service-life, High capacity:2100MAH Voltage: 9.6V

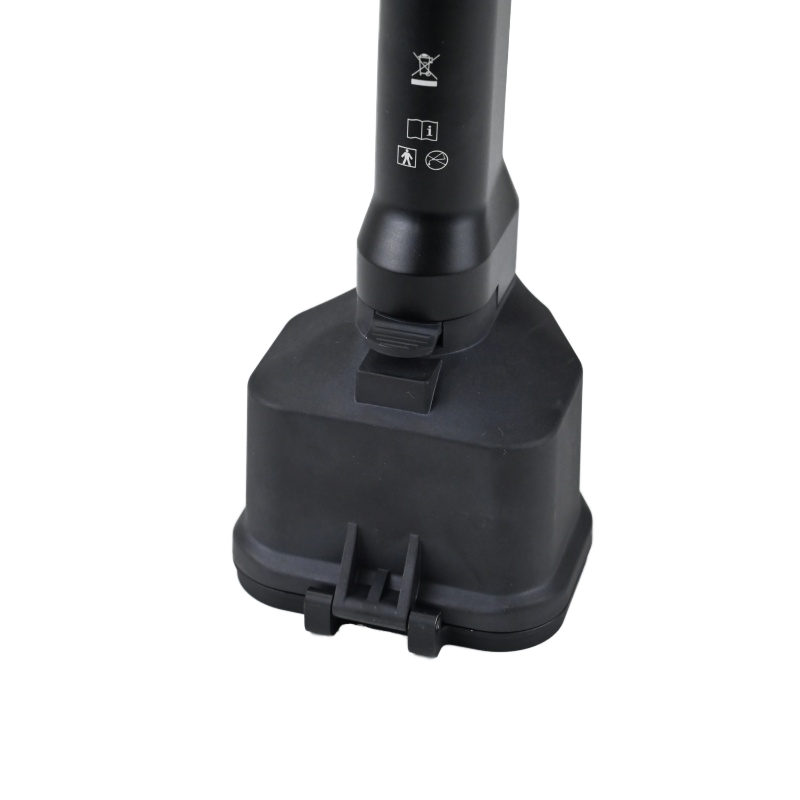

Battery Box	Peek material: sterilized more than 3000 times
Charger	More conveninent design to guarantee the battery life
Transfer Shield	Imported stainless steel 304
Key Chuck	Speed Range 0-1200rpm, Torque 3.5NM
Reaming Attachment	Speed Range 0-400rp, Torque 10NM
K-wire Attachment	0.7-1.6mm/1.6-4.0mm
Reciprocating Saw	Frequency: 0-12000cpm
Sterilizating box	445275215mm, 4.6Kg

Payment & Delivery

Our Advantages

Frequently Asked Questions

What type of motor is used in the E100 system?

The system is equipped with a high-performance brushless DC cannulated motor imported from the USA for superior reliability and power.

How many times can the battery box be sterilized?

The battery box is made from premium Peek material, allowing it to be sterilized more than 3000 times.

What is the torque capacity for the reaming attachment?

The reaming attachment provides a high torque of 10N-m with a speed range of 0-400rpm.

Does the system support K-wire procedures?

Yes, the system includes a K-wire attachment supporting sizes from 0.7-1.6mm and 1.6-4.0mm.

What are the dimensions of the sterilization box?

The sterilization box measures 445*275*215mm and weighs approximately 4.6Kg.

What material is the transfer shield made of?

The transfer shield is constructed from high-quality imported 304 stainless steel.
