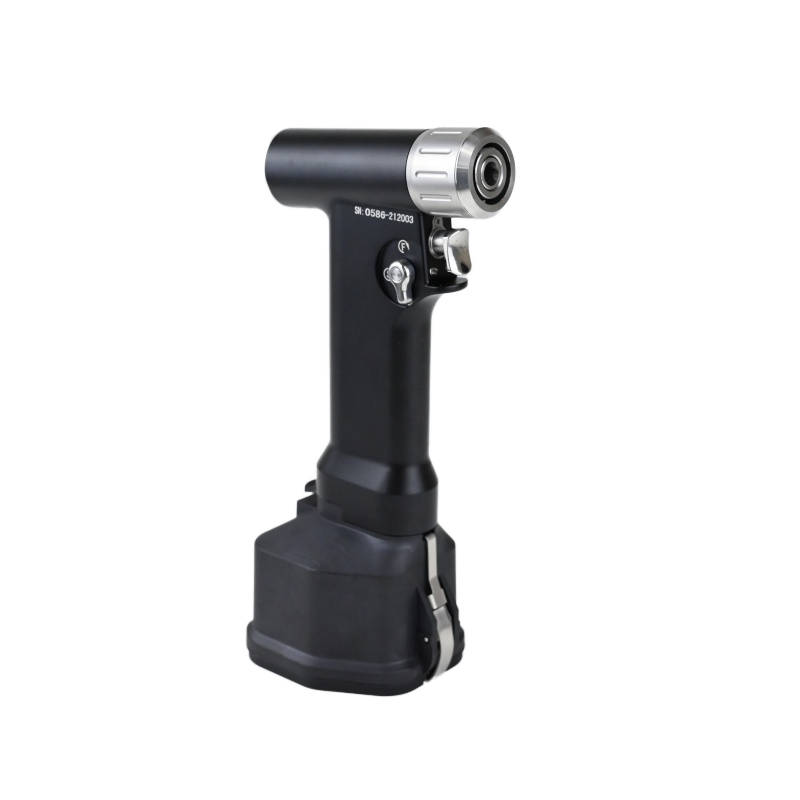

Animal Orthopedic Multifunctional Stryker Surgical Drill Orthopedic Power Drill

Send Inquiry

Product Description

Mini Multi Function Bone Drill Machine

🔷 Key Features

✔

Key Chuck Speed: 0-1200rpm

✔

Key Chuck Torque: 3.5N-m

✔

Reaming Speed: 0-400rpm

✔

Reaming Torque: 10N-m

🔷 Product Details

🔷 Technical Specifications

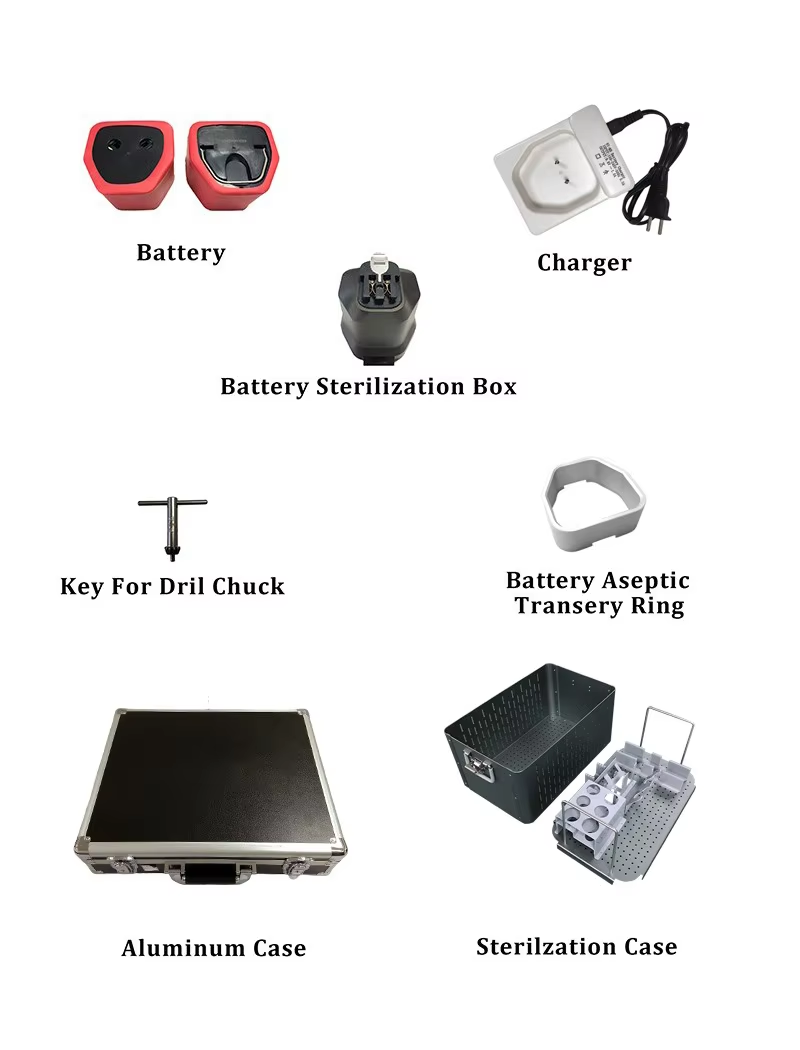

Item	Value
Multi-Function Handpiece	Equipped with brushless DC canulated motor imported from USA

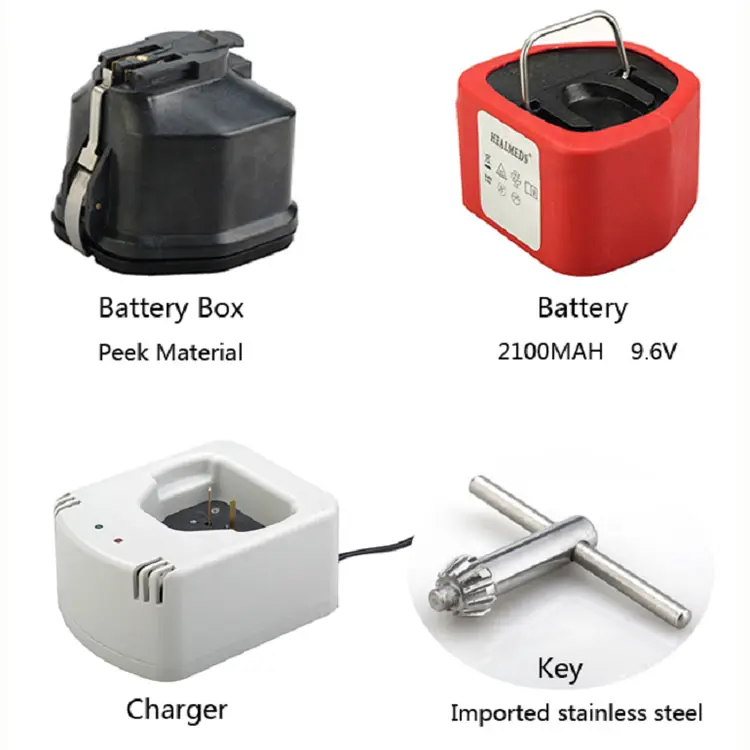

Battery	Ni-MH with Longer service-life, High capacity:2100MAH Voltage: 9.6V
Battery Box	Peek material: sterilized more than 3000 times
Charger	More convenient design to guarantee the battery life
Transfer Shield	Imported stainless steel 304
Key Chuck	Speed Range 0-1200rpm, Torque 3.5NM

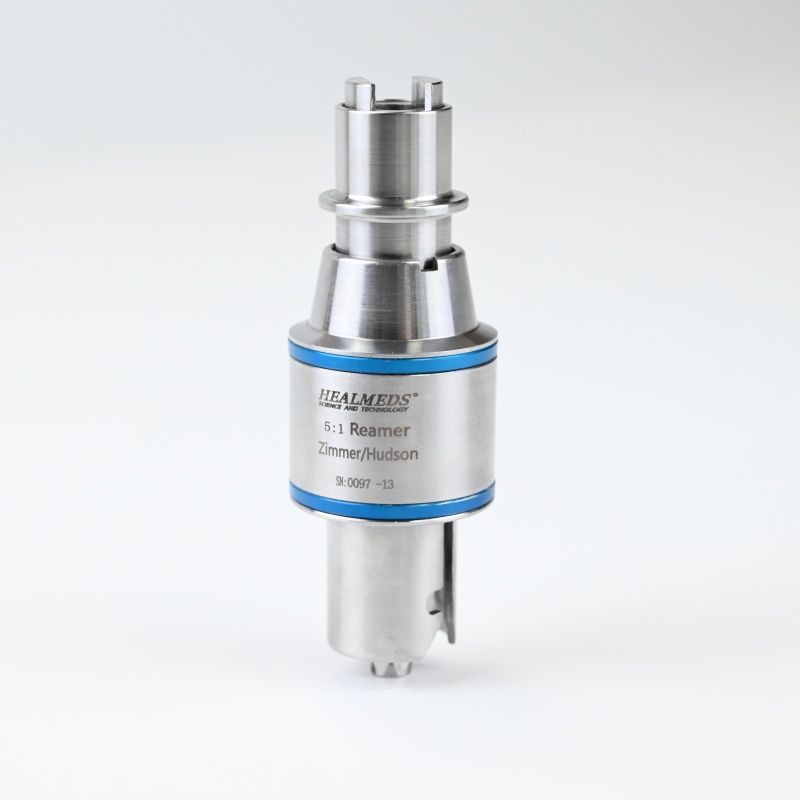

Reaming Attachment	Speed Range 0-400rp, Torque 10NM
K-wire Attachment	0.7-1.6mm/1.6-4.0mm
Reciprocating Saw	Frequency: 0-12000cpm
Sterilizing box	445275215mm, 4.6Kg

🔷 Payment & Delivery

🔷 Our Advantages

🔷 Frequently Asked Questions

❓ What type of motor is used in the E100 handpiece?

The E100 is equipped with a high-performance brushless DC canulated motor imported from the USA for superior reliability and power.

❓ How many times can the battery box be sterilized?

The battery box is made of premium Peek material, allowing it to be sterilized more than 3000 times without compromising integrity.

❓ What are the speed and torque specifications for reaming?

The reaming attachment operates at a speed range of 0-400rpm with a maximum torque of 10N-m.

❓ Does the system support K-wire procedures?

Yes, the system includes K-wire attachments supporting diameters of 0.7-1.6mm and 1.6-4.0mm.

❓ What is the battery capacity and voltage?

The system uses a 9.6V Ni-MH battery with a high capacity of 2100mAh for extended surgical use.

❓ What is the frequency range of the reciprocating saw?

The reciprocating saw attachment provides a high-frequency range of 0-12000cpm for precise cutting.
